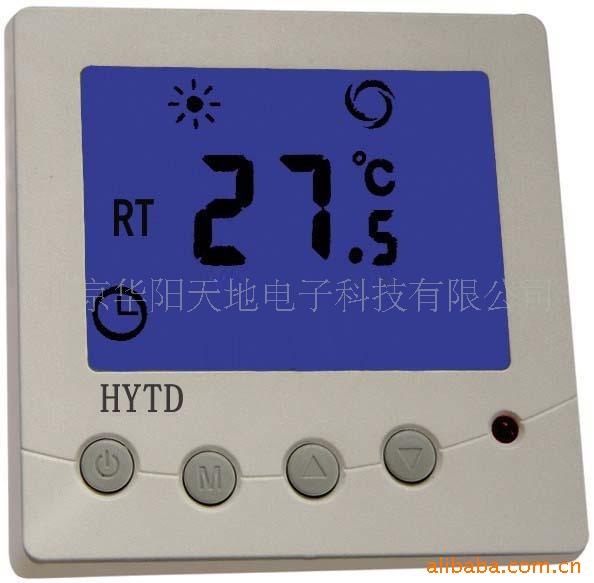

HY329D風機盤管溫控器采用微電腦控制技術，大屏幕液晶顯示，具有操作簡單，實用性強等特點。適用于暖通空調系統中風機盤管、二線電動閥兼容三線電動閥的溫度控制。
產品特點：
外觀新穎時尚，超大液晶屏幕顯示
產品電源采用變壓器降壓，安全可靠
采用高性能單片機，抗干擾能力強
操作簡單，實用性強
繼電器控制輸出
主要功能：
制冷/制熱/通風功能
室內溫度設定
溫度測量并顯示
掉電記憶功能
定時開關機功能
防凍保護功能（選配）
藍屏背光（選配）
紅外遙控功能（選配）
溫度校準功能
技術參數：
電源電壓： AC220V
設定范圍： 0-95℃
控溫精度： ±1℃
輸出功率： 阻性負載 AC220V 3A 感性負載AC220V 0.5A
自身功耗： <1W
接線方式： 端子壓接
顯 示： LCD
外 殼：高級阻燃材料PC+ABS
外型尺寸： 86 X 86 X 13mm
安裝孔距：60mm（標準）
接線圖：
可根據用戶要求，靈活設計！
Features:
The appearance of novel fashion, large LCD screen display
Product supply by the transber step-down, safe and reliable
High-perbance microcontroller, anti-interference ability
Simple, practical
Relay control output
Main features:
Cooling / heating / ventilation function
The indoor temperature setting
Temperature measurement and display
Power-down memory function
Timer switch function
Frost protection function (optional)
Blue backlight (optional)
Infrared remote control (optional)
Temperature calibration
Technical beters:
Power supply voltage: AC220V
Range: 0-95 ℃
Temperature accuracy: ± 1 ℃
Output power: AC220V 3A resistance load inductive load AC220V 0.5A
Their power consumption: <1W
Wiring: terminal crimping
Display: LCD
Housing: High flame retardant PC + ABS
Dimensions: 86 X 86 X 13mm
Installation hole distance: 60mm (standard)
