供應CCT-01-0/1V傳感器詳細介紹

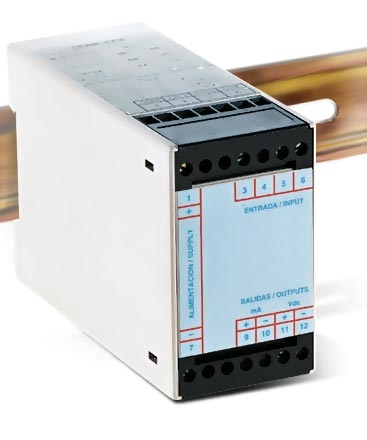

CCT-01-0/1V
經濟型DIN導軌信號調節器
CCT Series
1年保修 CE OmegaCare
經濟型DIN導軌信號調節器
CCT Series:經濟型DIN導軌信號調節器
CCT-100
電壓，電流，頻率，電阻，電位器，熱電偶，電阻應變計輸入模塊
積分器模塊轉換成電壓或電流頻率
回路供電電隔離器提供2 kveff輸入和輸出之間的隔離
與標準的35毫米DIN導軌兼容
CCT系列DIN軌道信號調節的目的是接受廣泛的輸入信號，如交流和直流電壓，電流，頻率，溫度（熱電偶和RTD），和過程傳感器，并提供0 / 4標準過程的輸出為20 mA，或0至10伏直流電。CCT系列特點的現代住宅設計，易于安裝在標準DIN導軌。連接安全可靠，對模塊的相對側的輸入和輸出連接。
內部設計
CCT系列是采用內插三模塊系統提供了靈活的選擇和改變供電設計，輸入信號與輸出信號。這個單位提供110伏交流電功率標準，參照220 VAC的銷售，和24伏直流電源。
隔離
在每個信號調節器三內部模塊（信號輸入，輸出和電源）的分離到2 kveff。
輸出
各CCT系列信號調節器可與電流和電壓輸出（只有一個可用于在一個時間）?？捎玫妮敵鲱愋桶?至20 mA或0到20毫安（跳線可選）和0至10伏直流電。
標準輸出是線性的，在信號輸入比例。熱電偶輸入模塊的功能的專用電路線性化輸出的實際溫度，而不是通過熱電偶傳感器產生的非線性信號。
規格：
Power: 110 Vac (standard); 220 Vac or 24 Vdc (optional) (±10% tolerance on all power supplies)
Output: 4 to 20 mA and 0 to 10 Vdc standard; 0 to 20 mA via jumper
Accuracy: ≤0.2% or ≤0.3,%, depending on the model
Response Time: ≤250 ms
Isolation: 2 kVeff
Ripple: ≤0.5%
Bandpass: 1.5 Hz (-3 dB)
Operating Ambient: -10 to 60°C (14 to 140°F)
Storage Ambient: -30 to 80°C (-22 to 176°F)
Temperature Coefficient: ≤0.015%/°C
Power Consumption: 1.5 VA max
Enclosure: Polycarbonate, RAL 7032; UL 94 V-1, IP40 protection
Terminal Housing: Polycarbonate, UL 94-2, IP20 protection
Max Wire Size: 4 mm2 (14 AWG)
Dimensions: 75 H x 45 W x 110 mm D (2.95" x 1.77" x 4.33")
Weight: 270 g (0.6 lb)
Mounting: DIN rail 46277 and EN 50022 (35 x 7.5 mm)
產品型號 產品描述
DC Voltage Input
CCT-01-0/100MV 0 to 100 mV dc b, 0 to 10 V or 0/4 to 20 mA output
CCT-01-0/1V 0 to 1 V dc b, 0 to 10 V or 0/4 to 20 mA output
CCT-01-0/10V 0 to 10 V dc b, 0 to 10 V or 0/4 to 20 mA output
CCT-01-0/100V 0 to 100 V dc b, 0 to 10 V or 0/4 to 20 mA output
CCT-01-0/650V 0 to 650 V dc b, 0 to 10 V or 0/4 to 20 mA output
AC Voltage Input
CCT-08-0/100MV 0 to 100 mV ac b, 0 to 10 V or 0/4 to 20 mA output
CCT-08-0/1V 0 to 1 V ac* b, 0 to 10 V or 0/4 to 20 mA output
CCT-08-0/10V 0 to 10 V ac* b, 0 to 10 V or 0/4 to 20 mA output
CCT-08-0/100V 0 to 100 V ac* b, 0 to 10 V or 0/4 to 20 mA output
CCT-08-0/650V 0 to 650 V ac* b, 0 to 10 V or 0/4 to 20 mA output
AC Current Input
CCT-04-0/50MA 0 to 50 mA ac b, 0 to 10 V or 0/4 to 20 mA output
CCT-04-0/5A 0 to 5 A ac b, 0 to 10 V or 0/4 to 20 mA output
DC Current Input
CCT-32-0/50MA 0 to 50 mA dc b, 0 to 10 V or 0/4 to 20 mA output
CCT-32-0/5MA 0 to 5 mA dc b, 0 to 10 V or 0/4 to 20 mA output
RTD Input
CCT-20-0/100C 0 to 100°C RTD b, to 10 V or 0/4 to 20 mA output
CCT-20-0/200C 0 to 200°C RTD b, to 10 V or 0/4 to 20 mA output
CCT-20-0/300C 0 to 300°C RTD b, to 10 V or 0/4 to 20 mA output
CCT-20-0/400C 0 to 400°C RTD b, to 10 V or 0/4 to 20 mA output
CCT-20-0/500C 0 to 500°C RTD b, to 10 V or 0/4 to 20 mA output
CCT-20-0/600C 0 to 600°C RTD b, to 10 V or 0/4 to 20 mA output
Resistance/Potentiometer Input
CCT-95-0/200 0 to 200 Ω b, 0 to 10 V or 0/4 to 20 mA output
CCT-95-0/2K 0 to 2K Ω b, 0 to 10 V or 0/4 to 20 mA output
CCT-95-0/20K 0 to 20 kΩ b, 0 to 10 V or 0/4 to 20 mA output
CCT-95-0/200K 0 to 200 kΩ b, 0 to 10 V or 0/4 to 20 mA output
CCT-90 Potentiometer b, 0 to 10 V or 0/4 to 20 mA output
Frequency Input
CCT-05-40/70 0 to 40 Hz min range, 0 to 70 Hz max range, 0 to 10 V or 0/4 to 20 mA
CCT-05-70/125 0 to 70 Hz min range, 0 to 125 Hz max range, 0 to 10 V or 0/4 to 20 mA
CCT-05-125/225 0 to 125 Hz min range, 0 to 225 Hz max range, 0 to 10 V or 0/4 to 20 mA
CCT-05-225/400 0 to 225 Hz min range, 0 to 400 Hz max range, 0 to 10 V or 0/4 to 20 mA
CCT-05-400/700 0 to 400 Hz min range, 0 to 700 Hz max range, 0 to 10 V or 0/4 to 20 mA
CCT-05-700/1250 0 to 700 Hz min range, 0 to 1250 Hz max range, 0 to 10 V or 0/4 to 20 mA
CCT-05-1250/2250 0 to 1250 Hz min range, 0 to 2250 Hz max range, 0 to 10 V or 0/4 to 20 mA
CCT-05-2250/4K 0 to 2250 Hz min range, 0 to 4 kHz max range, 0 to 10 V or 0/4 to 20 mA
CCT-05-4K/7K 0 to 4 kHz min range, 0 to 7 kHz max range, 0 to 10 V or 0/4 to 20 mA
CCT-05-7K/12.5K 0 to 7 kHz min range, 0 to 12.5 kHz max range, 0 to 10 V or 0/4 to 20 mA
CCT-05-12.5K/22.5K 0 to 12.5 kHz min range, 0 to 22.5 kHz max range, 0 to 10 V or 0/4 to 20 mA
CCT-05-22.5K/40K 0 to 22.5 kHz min range, 0 to 40 kHz max range, 0 to 10 V or 0/4 to 20 mA
Strain Gage Input
CCT-80 Strain gage b, 0-10 V or 0/4 to 20 mA output
Thermocouple Input (common models are show below. Please use the Part Number Builder beneath this table to other configuration)
CCT-22-0/400C J thermocouple b, 0-200°C , 0/4 to 20mA output
CCT-23-0/400C K thermocouple b, 0-1000°C , 0/4 to 20mA output
CCT-24-0/200C T thermocouple b, 0-200°C , 0/4 to 20mA output
CCT-24-0/300C T thermocouple b, 0-300°C , 0/4 to 20mA output
Loop Powered Isolators
CCT-100 Loop powered galvanic isolation module
Power Supplies
FAR-1 10 V, 250 mA power supply with excitation sense capability
FAR-2-5 5 V, 225 mA power supply
FAR-2-9 9 V, 225 mA power supply
FAR-2-12 12 V, 200 mA power supply
FAR-2-15 15 V, 100 mA power supply
FAR-2-18 18 V, 100 mA power supply
FAR-2-24 24 V, 150 mA power supply
產品型號說明
(1) (2)
CCT-
選項描述
(1) Input Types
選擇
01 代表 DC Voltage
08 代表 AC Voltage
04 代表 AC Current
32 代表 DC Current
22 代表 Thermocouple Type J
23 代表 Thermocouple Type K
24 代表 Thermocouple Type T
25 代表 Thermocouple Type E
26 代表 Thermocouple Type S
27 代表 Thermocouple Type R
20 代表 RTD
90 代表 Potentiometer
95 代表 Resistance
05 代表 Frequency
80 代表 Strain Gage
55-V 代表 Voltage
55-I 代表 Current
(2) Input Ranges
選擇
-0/100MV 代表 0 to 100 mV dc (CCT-01 Only)
-0/1V 代表 0 to 1 V dc (CCT-01 Only)
-0/10V 代表 0 to 10 V dc (CCT-01 Only)
-0/100V 代表 0 to 100 V dc (CCT-01 Only)
-0/650V 代表 0 to 650 V dc (CCT-01 Only)
-0/100MV 代表 0 to 100 mV ac (CCT-08 Only)
-0/1V 代表 0 to 1 V ac (CCT-08 Only)
-0/10V 代表 -0/10V ac (CCT-08 Only)
-0/100V 代表 0 to 100 V ac (CCT-08 Only)
-0/650V 代表 0 to 650 V ac (CCT-08 Only)
-0/50MA 代表 0 to 50 mA ac (CCT-04 Only)
-0/5A 代表 0 to 5 A ac (CCT-04 Only)
-0/50MA 代表 0 to 50 mA dc (CCT-32 Only)
-0/5MA 代表 0 to 5 mA dc (CCT-32 Only)
-0/200C 代表 0 to 200°C (CCT-24 Only)
-0/300C 代表 0 to 300°C (CCT-23 and CCT-24 Only)
-0/400C 代表 0 to 400°C (CCT-22 CCT-23 and CCT-24 Only)
-0/500C 代表 0 to 500°C (CCT-22 and CCT-23 Only)
-0/600C 代表 0 to 600°C (CCT-22 and CCT-23 Only)
-0/700C 代表 0 to 700°C (CCT-22 and CCT-23 Only)
-0/800C 代表 0 to 800°C (CCT-23 and CCT-25 Only)
-0/900C 代表 0 to 900°C (CCT-23 Only)
-0/1000C 代表 0 to 1000°C (CCT-23 Only)
-0/1200C 代表 0 to 1200°C (CCT-23 Only)
-600/1600C 代表 600 to 1600°C (CCT-26 Only)
-850/1700C 代表 850 to 1700°C (CCT-27 Only)
-0/100C 代表 0 to 100°C (CCT-20 Only)
-0/200C 代表 0 to 200°C (CCT-20 Only)
-0/300C 代表 0 to 300°C (CCT-20 Only)
-0/400C 代表 0 to 400°C (CCT-20 Only)
-0/500C 代表 0 to 500°C (CCT-20 Only)
-0/600C 代表 0 to 600°C (CCT-20 Only)
Nothing(leave field blank) 代表 100 Ohms Min/1 M Ohm Max Input (CCT-90 Only)
-0/200 代表 0 to 200 ? (CCT-95 Only)
-0/2K 代表 0 to 2K ? (CCT-95 Only)
-0/20K 代表 0 to 20K ? (CCT-95 Only)
-0/200K 代表 0 to 200K ? (CCT-95 Only)
-40/70 代表 Min Range 0 to 40 Hz. Max Range 0 to 70 Hz. (CCT-05 Only)
-70/125 代表 Min Range 0 to 70 Hz. Max Range 0 to 125 Hz (CCT-05 Only)
-125/225 代表 Min Range 0 to 125 Hz. Max Range 0 to 225 Hz (CCT-05 Only)
-225/400 代表 Min Range 0 to 225 Hz. Max Range 0 to 400 Hz (CCT-05 Only)
-400/700 代表 Min Range 0 to 400 Hz. Max Range 0 to 700 Hz (CCT-05 Only)
-700/1250 代表 Min Range 0 to 700 Hz. Max Range 0 to 1250 Hz (CCT-05 Only)
-1250/2250 代表 Min Range 0 to 1250 Hz. Max Range 0 to 2250 Hz (CCT-05 Only)
-2250/4K 代表 Min Range 0 to 2250 Hz. Max Range 0 to 4 kHz (CCT-05 Only)
-4K/7K 代表 Min Range 0 to 4 kHz. Max Range 0 to 7 kHz (CCT-05 Only)
-7K/12.5K 代表 Min Range 0 to 7 kHz. Max Range 0 to 12.5 kHz (CCT-05 Only)
-12.5K/22.5K 代表 Min Range 0 to 12.5 kHz. Max Range 0 to 22.5 kHz (CCT-05 Only)
-22.5K/40K 代表 Min Range 0 to 22.5 kHz. Max Range 0 to 40 kHz (CCT-05 Only)
Nothing(leave field blank) 代表 350 ? (CCT-80 Only)
Nothing(leave field blank) 代表 Ranges varies (CCT-55-V and CCT-I Only)
CCT-01-0/1V
