2、數據采集方案

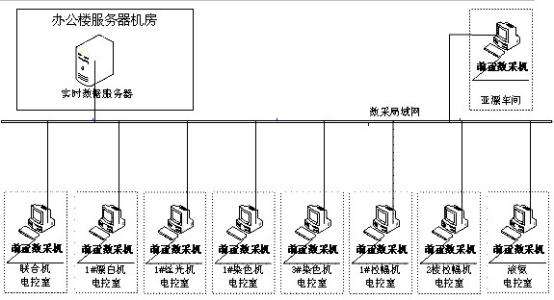

1）系統網絡結構圖
根據不同數據采集對象接口的網絡特性不同，采取不同組網方式。對于MPI接口方式，如果PLC位于電控室，將在每個電控室安裝一臺前置數采機，將電控室所有MPI接口PLC組成一個區域MPI網，通過CP5611卡與前置數采同相連；如果PLC位于生產線上，則需要每一個區域MPI網上接加一對MPI中繼器，將此PLC連接到較近前置數采機上。對于RS232接口（串口或編程口），如果PLC位于電控室且與前置數采機距離較近（小于10m）時，可直接與計算機串口相連；對于距離較遠，可在計算機和PLC端各增加一個RS232/RS485轉換器，增加通訊距離。系統網絡結構圖如下所示：
注：本文中是西門子PLC和三菱PLC為例，如為其他PLC應采用不同的接口方式
2）與控制器的通訊協議：
•西門子
與西門子PLC采用MPI、DP、以太網等通訊方式，對于有些設備裝置由于不能修改PLC參數，可以通過MPI網關進行間接通訊。
•三菱
對于三菱PLC將采用串行和以太網兩種通訊方式為主，協議則以三菱專有的1C、2C、1E和3E為主。對于少數無法或不便于擴展通訊模塊也可以采監聽方式實現數據采集。
