RTD-809-TS-6
灏佽RTD鍌虫劅鍣�
RTD-809
灏佽RTD鍌虫劅鍣�
RTD-809:灏佽RTD鍌虫劅鍣�
RTD-809
Flat Disc Shape is Ideal for Surface Temperature Measurements
Bonds to Surfaces for Measuring Heat Loss or Operating Temperatures
Sensor Contains a High-Accuracy, 100 Ohm, Class 鈥淎鈥� DIN Platinum Element. 1 meter (40") or PFA Insulated & Jacketed Cable and 3-Pin Miniature Connector
Temperature Coefficient (Alpha) = .00385 ohm/ohm/掳C
Max temp. 230oC

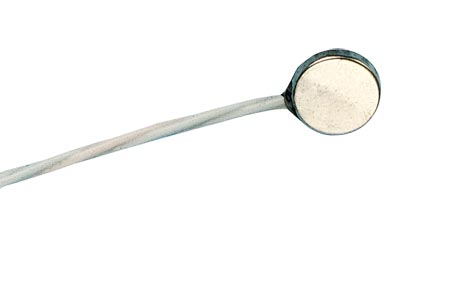

This flat "disc" encapsulated 100 ohm Class A DIN platinum RTD sensor is ideal for surface temperature measurements such as heat loss or compressor efficiency applications.
The sensing end can be cemented into place for permanent mounting or can be adhered using a single-side tape.
When combined with Omega's extension cables, transmitters, controllers, dataloggers, thermometers or temperature displays, these sensors become the heart of a complete temperature control and monitoring system.
鐢㈠搧鍨嬭櫉/鐢㈠搧鎻忚堪
RTD-809 Encapsulated sensor in a stainless steel housing. PFA insulated lead wire, 1m (40").
Most Popular Options
OB-200-2 Omegabond 200 Epoxy, 2oz Twin Pack
CNi3253 1/32 DIN Controller with One Analog and One Relay Output
SPRTX-M1 4 to 20 ma Plug-In Transmitter
OM-DAQPRO-5300 Handheld Datalogger
TX92-4 Miniature Transmitter, -18 to 260掳C
DP461-RTD Economical Temperature Meter
TECU10-MTP-U-M-MTP-U-F 10 Foot Long PFA Insulated & Jacketed Extension Cable with 3-Wire Miniature Connectors Both Ends
娉ㄩ噵: Terminations Available: Provided with a miniature connector standard. For heavy-duty connector add 鈥�-OTP鈥� to model number and $7 to price.
For audio connector add 鈥�-TA3F鈥� to model number and $10 to price (note: when specifying the TA3F connector option, please provide the wiring requiremements).
(OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$)
瑷傝臣绀轰緥: (1) RTD-809 Class A RTD sensor, SS housing, PFA lead wire.
