鏁�(sh霉)瀛楀剙琛ㄥ拰鎺у埗鍣� ? CNiS32 & DPiS32 Series
i-Series 1/32 DIN Programmable Strain/ Process PID Controllers and Meters with RS-232 & RS-485 Communications Featuring a Totally Programmable Color Display
CNiS32 & DPiS32 Series
High Quality
FREE 5-Year Warranty
High Accuracy 0.03% Rdg
User Friendly, Simple to Configure
Free Software, Active X Controls
Electronic Indicator and Controller Models Available
鐢�(ch菐n)鍝佹弿杩�

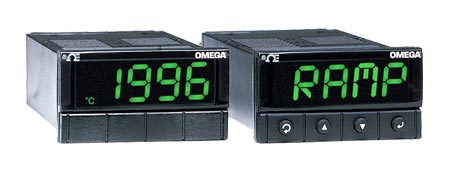

The iS32 series of meter/controllers can measure a wide variety of DC voltage and current outputs for all common load cells, pressure transducers, and most any strain gauge type of transducer. It is the first instrument of its kind, offering a wealth of powerful features and perbance in an amazingly compact 1/32 DIN package. The iS32 handles b ranges of 0-100 mV, 0-1 V, 0-10 V, 0-20 mA (4-20 mA). The iS32 is easy to configure and scale to virtually any engineering units using the push buttons on the front panel, or using personal computer with the optional serial communications and free configuration software. The serial communications option includes both RS-232 and RS-485 on one instrument, and the straightforward OMEGA ASCII communications protocol, as well as MODBUS protocol. The iS32 includes built-in excitation for transducers, selectable as 10 V at 100 mA or 5 V at 60 mA. The iS32 features a choice of two optional outputs: Form C SPDT (single pole double throw) mechanical relays, solid state relays, DC pulse, and programmable analog output selectable for either a control function or retransmission of the process value. The iS32 features the iSeries totally programmable color display that can change colors between Green, Amber, and Red at any setpoint or alarm point.
SPECIFICATIONS
Input Ranges: 0-100 mV, 0-1 V, 0-10 V, 0-20 mA
Isolation: 354 V peak per IEC spacing
NMR: 60 dB
CMR: 120 dB
Input Impedance: 10 MOhms for 100 mV b, 1 MOhm for 1 or 10 V b, 5 Ohms for 20 mA current b
Display: 4 digits, 9 segments 10.2 mm (.4")
Analog-to-Digital technique: Dual slope
Internal A/D Resolution: 15 bits
Read rate: 3 / sec
Polarity: Automatic
Max Error Strain/Process: 卤0.03% rdg.
Span tempco.: 卤 50 ppm / C
Step response: 1-2 sec.
Warmup to rated accuracy: 30 min.
Analog Output (optional): 0-10 V, 4-20 mA, can be used as Retransmission or PID Control.
Excitation Voltage: 10 V @ 100 mA, 5 V @ 60 mA
(no excitation on models with "C24" or "DC" options)
Power: 90-240 Vac 50-400 Hz or 90-375 Vdc, 4 W (optional) 24 Vac 50-400 Hz or 12-36 Vdc, 5 W
Dimensions: 25.4 H x 48 W x 127 D mm (1.0 x 1.89 x 5.0")
Weight: 127 g (0.28 lb)
Approvals: CE per EN50081-1, EN50082-2, EN61010-1
For full product specifications view Specs pdf
Examples of pricing for popular models is referenced in the "To Order" box. Use the "Part Number Builder" below to get pricing for all available models.
娉�: Transducer excitation not available on models with serial communications ("-C24") option or low voltage power option ("-DC").
鐢�(ch菐n)鍝佺法铏�(h脿o)鐢熸垚鍣�
鍦ㄦ铏曠敓鎴愭偍鑷繁鐨勭敘(ch菐n)鍝佺法铏�(h脿o)
(1) (2) (3) (4)
CNiS32
閬搁爡(xi脿ng)瑾�(shu艒)鏄�:
(1) Control Outputs #1 閬搁爡(xi脿ng):
2 for Solid State Relay/1 A at 120/240 Vac continuous
3 for SPDT Relay
4 for Pulsed 10 Vdc at 20 mA
5 for Analog Output 0 to 10 Vdc
(2) Control Outputs #2 閬搁爡(xi脿ng):
2 for Solid State Relay/1 A at 120/240 Vac continuous
3 for Relay SPDT 3A at 120/3 A at 240 Vac
4 for Pulsed Driver 10 Vdc at 20 mA /for use with external SSR
(3) Serial Communications 閬搁爡(xi脿ng):
鐒�(w煤)锛堥伕闋�(xi脿ng)鐐虹┖鐧斤級 for Standard Unit
-C24 for Isolated RS-232 and RS-485 300 to 19.2 k baud (no excitation voltage with C24 option)
(4) Power Supply 閬搁爡(xi脿ng):
鐒�(w煤)锛堥伕闋�(xi脿ng)鐐虹┖鐧斤級 for Standard Power (90 to 240 Vac/dc @ 50 to 400 Hz)
-DC for Low Voltage Power (24 Vac or 12 to 36 Vdc power - no excitation with this option)
娉�: 骞堕潪鎵€鏈夌祫鍚堥兘鏈夋晥锛岃珛(q菒ng)鏌ラ柋瑕�(gu墨)鏍艰〃涓婄殑鏈夋晥鐢�(ch菐n)鍝佺法铏�(h脿o)銆�
鐢�(ch菐n)鍝佺法铏�(h脿o) 鐢�(ch菐n)鍝佹弿杩�
CNiS3233 1/32 DIN i Series strain gage controller with two Form "C" mechanical relays, 90 - 240 Vac/dc power, and built in transducer excitation
CNiS3222-C24 1/32 DIN i Series strain gage controller with two solid state relays, RS-232 & RS-485 communications and 90 - 240 Vac/dc power (no excitation)
CNiS3222-C24-DC 1/32 DIN i Series strain gage controller with two solid state relays, RS-232 & RS-485 communications and 24 Vac or 12-36 Vdc power (no excitation)
CNiS3233 1/32 DIN i Series strain gage controller with two Form "C" mechanical relays, 90 - 240 Vac/dc power, and built in transducer excitation
CNiS3233-C24 1/32 DIN i Series strain gage controller with two Form "C" mechanical relays, RS-232 & RS-485 communications and 90 - 240 Vac/dc power (no excitation)
CNiS3233-C24-DC 1/32 DIN i Series strain gage controller with two Form "C" mechanical relays, RS-232 & RS-485 communications and 24 Vac or 12-36 Vdc power (no excitation)
DPiS32 1/32 DIN i Series strain gage meter with 90 - 240 Vac/dc power, and built in transducer excitation
DPiS32-C24 1/32 DIN i Series strain gage meter with RS-232 & RS-485 communications and 90 - 240 Vac/dc power (no excitation)
DPiS32-DC 1/32 DIN i Series strain gage meter with 24 Vac or 12-36 Vdc power (no excitation)
DPiS32-C24-DC 1/32 DIN i Series strain gage meter with RS-232 & RS-485 communications and 24 Vac or 12-36 Vdc power (no excitation)
鐢�(ch菐n)鍝佺法铏�(h脿o)
CNiS3233
CNiS3222-C24
CNiS3222-C24-DC
CNiS3233
CNiS3233-C24
CNiS3233-C24-DC
DPiS32
DPiS32-C24
DPiS32-DC
DPiS32-C24-DC
