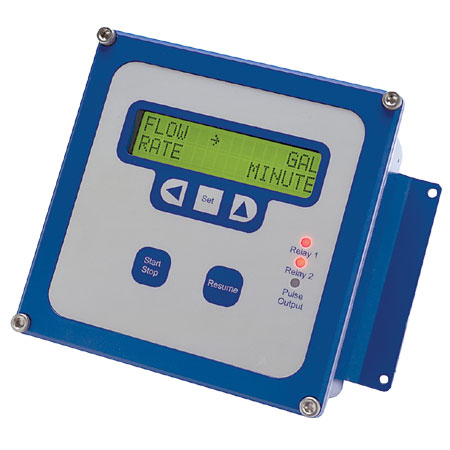

DPF52-GR
Flow Batching Processor
DPF-520 Series
Batch Control
Regeneration Control
High/Low Flow Rate Monitoring
Water Usage Monitoring
NEMA 4X (IP56)
鐢�(ch菐n)鍝佹弿杩�
The DPF-520 Series is a batching flow processor with additional output controls. It is designed for use with Omega? flowmeters and flow sensors, as well as other manufactuer鈥檚 products which have frequency output proportional to flow. In addition to batch functions, the DPF-520 Series indicates flow rate, and other data in large 9.66 mm (3/8") digits on an easily-read, backlit display. Units of measure are user selectable. An analog output of 4 to 20 mA is available both in active and passive loop configuration, and in 0 to 5 Vdc or 0 to 10 Vdc outputs, and can be used in applications such as flow rate logging. Two programmable pulse scaled outputs are also standard, and can be used, for example, to provide proportional chemical feed with a pulse-responsive metering pump. The housing is supplied with two brackets for wallmount applications, or the top/bottom housings can be easily separated and reassembled for panel-mount.
SPECIFICATIONS
Power: 115 Vac, 50/60 Hz @ 125 mA, 12 Vdc @ 750 mA or 10 to 16 Vdc (220 Vac optional)
Temperature: 0 to 55掳C (32 to 130掳F)
Enclosure: Precision cast aluminum, NEMA 4X (IP56), panel or wall mount configuration
Batch Outputs: Two b C (SPDT) relays, 115 Vac 6A maximum
Maximum Pulse Output: 100 mA at 60 Vac/Vdc, opto-isolated, open-collector
Memory Type: Non-volatile EEPROM with auto-backup
Sensor Power: 12 Vdc, 10 mA
Display: Totalizer = 8 digit; Rate = 5 digit, backlit
Units: Volume = Gallons, cubic feet, cubic meters, millions of gallons, milliliters, fluid ounces, pounds, liters; Time = Seconds, minutes, hours, days
Analog Output: 4 to 20 mA passive opto-isolated; 4 to 20 mA active; 0 to 5 Vdc, or 0 to 10 Vdc
Sensor Input: 1 to 1000 Hz, ESD protected, interfaces to current sinking sensor (NPN, TTL, contact closure) output
Setup Memory: Non-volatile EEPROM, auto-backup
娉�: Comes complete with 2 mounting brackets and operator鈥檚 manual.
鐢�(ch菐n)鍝佺法铏� 鐢�(ch菐n)鍝佹弿杩�
DPF-521 Wall mount batch controller
DPF-521C Wall mount batch controller with regeneration control
DPF-521R Wall mount batch controller with rate alarm
DPF-521C-220V Wall mount batch controller with regeneration control, 220 Vac
DPF-521R-220V Wall mount batch controller with rate alarm control, 220 Vac
DPF-522 Wall mount usage monitor
DPF-522-220V Wall mount usage monitor, 220 Vac
鐢�(ch菐n)鍝佺法铏�
DPF-521
DPF-521C
DPF-521R
DPF-521C-220V
DPF-521R-220V
DPF-522
DPF-522-220V
