Manta G-1236也是一款1240萬像素的機器視覺攝像頭，支持GigE以太網端口和Hirose I/O端口。Manta G-1236采用了高品質的1.1型（17.6毫米對角線）索尼IMX304 CMOS傳感器和Pregius全球快門技術。在全分辨率下，該相機每秒運行9.7幀。興趣范圍較小，Manta G-1236是傳統的理想替代品CCD模型。Manta是Allied Vision的多功能GigE視覺攝像機之一，具有廣泛的特征。特別突出的是三個查找表功能強大的金屬外殼和許多模塊化選項。帶有防護玻璃B 270（ASG）的模型船和帶有IRC Hoya的彩色模型船；C-5000紅外截止濾波器。
應用領域：
Manta G-1236適用于多種應用，包括：
?機器視覺
?需要全高清的廣播分析，如體育分析
?工業檢查?安全和監控
?智能交通解決方案（ITS）/交通（交通監控、速度強制、收費）
?低光/高靈敏度條件
?具有動態照明環境的室外應用
主要特點：
? Monochrome (G-1236B) and color (G-1236C) models
? GigE Vision interface with Power over Ethernet option
? Screw mount RJ45 Ethernet connector for secure operation in industrial environments
? Supports cable lengths up to 100 meters (CAT-5e or CAT-6)
? Trigger over Ethernet (ToE) Action Commands allow for a single cable solution to
reduce system costs
? Comprehensive I/O functionality for simplified system integration
? Popular C-Mount lens mount
? Easy camera mounting via standard M3 threads on top and bottom of housing or
optional tripod adapter? Easy software integration with Allied Vision's Vimba SDK and compatibility to the most
popular third party image-processing libraries.
Options:
? Available with Power over Ethernet (PoE) compliant interface
? Available with CS-Mount or M12-Mount adapter
? Available with Protection glass B 270 (ASG), IRC type Jenofilt 217 (IR cut filter), IRC
Hoya C-5000 (IR cut filter), IRP RG715 (IR pass filter), IRP RG830 (IR pass filter)
? Available with various angled-head housings or board level version
? Available with white medical design

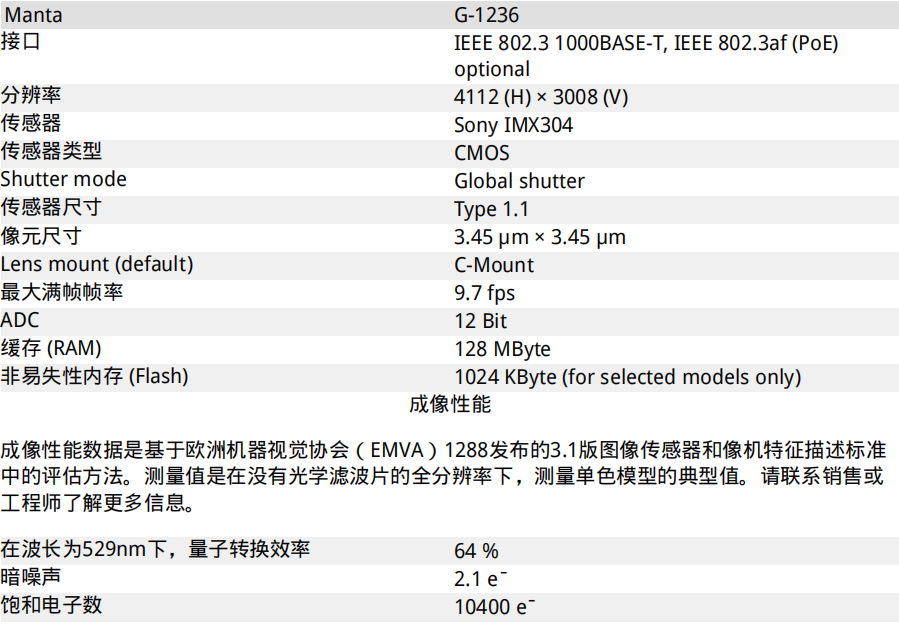

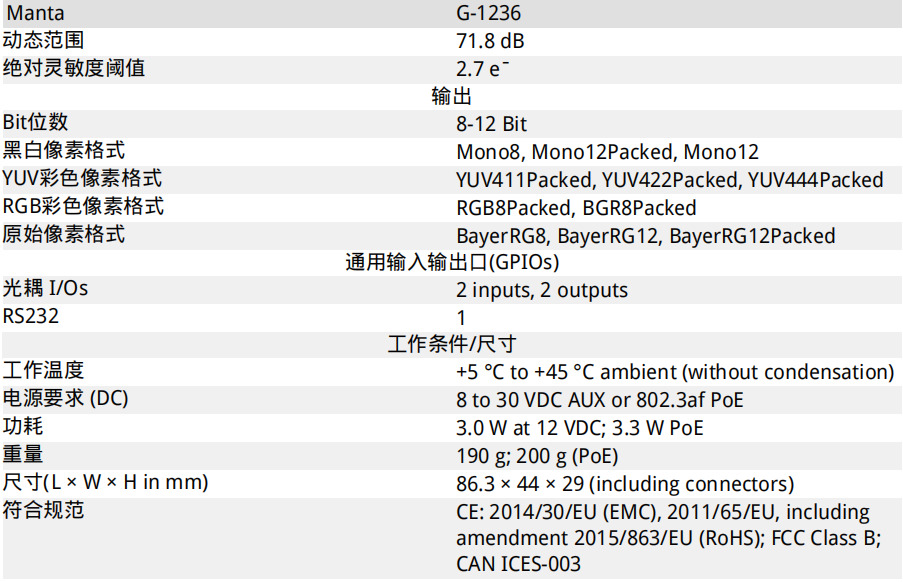

性能參數：
