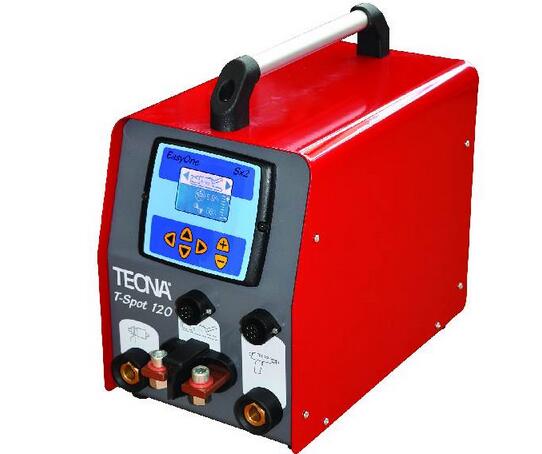

TECNA點焊機3541 T-Spot 120
T 120焊機是一種修復鋼車身機。它集成了兩個不同的功能：鋼的檢舉和雙面點焊焊接非結構表。
用于板材矯直、鉚釘焊接和碳電極局部加熱的多功能槍。按鍵遙控允許程序的快速選擇和微調
用于非結構片雙面點焊的可選“C”型槍。
easyone SX2微處理器控制單元允許一個簡單的和機器的快速調整通過LCD圖形顯示。
| Power supply |
U1N f |
V Hz |
400 50 |
230 50 |
| Conventional power at 50% | S50 | kVA | 5 | 5 |
| Permanent power at 100% | Sp | kVA | 3.5 | 3.5 |
| Max. b current in short circuit | I1cc | A | 63 | 109 |
|
Max. short circuit output current "C" type gun Multifunction gun |
I2cc |
kA kA |
4.5 2.6 |
4.5 2.6 |
|
Permanent output current at 100% "C" type gun Multifunction gun |
I2p |
A A |
630 420 |
630 420 |
|
Output no load voltage "C" type gun Multifunction gun |
U20 |
V V |
5.6 8.3 |
5.6 8.3 |
| Cooling | Air | Air | ||
| Insulation class | F | F | ||
| IP rating | IP21 | IP21 | ||
| Dimensions |
H W D |
mm mm mm |
345 220 420 |
345 220 420 |
| Generator net weight | kg | 23 | 23 | |
| CONNECTION DATA | ||||
|
Power cable Length Core section |
m mm2 |
3.5 2.5 |
3.5 4 |
|
|
Required distribution system cables/extension cords Total L <= 15 m Total L = 30 m |
mm2 mm2 |
2.5 2.5 |
4 6 |
|
|
Required line protection Plug Fuses (gG) Delayed fuses (aM) Circuit breaker (C curve) Circuit breaker (D curve) |
A A A A A |
16 16 16 16 16 |
16-25 - 16-25 25 16 |
|
| EMISSION DATA | ||||
| Airborne noise | dB(A) | < 70 | < 70 | |
| Vibrations level | m/s2 | < 2.5 | < 2.5 | |
|
Measurement conditions: welding time welding current work rate |
cycles kA welds/min |
16 2.9 4 |
16 2.9 4 |
|
