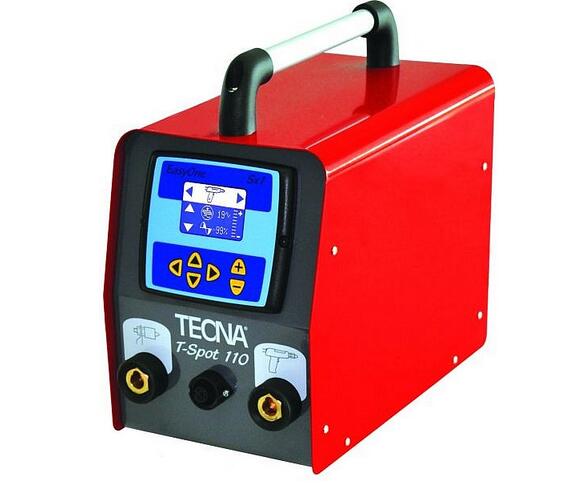

TECNA多功能點焊機T-Spot 110
T 110機設計修復鋼車身，特別是板材矯直，鉚釘焊接和局部加熱碳電極。
用于板材矯直、鉚釘焊接和碳電極局部加熱的多功能槍。按鍵遙控允許程序的快速選擇和微調
easyone SX1的微處理器控制單元允許一個簡單的和機器的快速調整通過LCD圖形顯示。
除了手動調節模式，它攜帶最常見的工作，使一個簡單的協同曲線微調提供了一些優化的焊接程序。
| Power supply |
U1N f |
V Hz |
230 50 |
| Conventional power at 50% | S50 | kVA | 2.5 |
| Permanent power at 100% | Sp | kVA | 1.8 |
| Max. b current in short circuit | I1cc | A | 86 |
| Max. short circuit output current | I2cc | kA | 2.25 |
| Permanent output current at 100% | I2p | A | 200 |
| Output no load voltage | U20 | V | 8.8 |
| Cooling | Air | ||
| Insulation class | F | ||
| IP rating | IP21 | ||
| Dimensions |
H W D |
mm mm mm |
320 200 360 |
| Generator net weight | kg | 18 | |
| CONNECTION DATA | |||
|
Power cable Length Core section |
m mm2 |
3.5 2.5 |
|
|
Required distribution system cables/extension cords Total L <= 15 m Total L = 30 m |
mm2 mm2 |
2.5 4 |
|
|
Required line protection Plug Fuses (gG) Delayed fuses (aM) Circuit breaker (C curve) Circuit breaker (D curve) |
A A A A A |
16 - 16 16 16 |
|
| EMISSION DATA | |||
| Airborne noise | dB(A) | < 70 | |
| Vibrations level | m/s2 | < 2.5 | |
|
Measurement conditions: welding time welding current work rate |
cycles kA welds/min |
5 2 5 |
|
