Hummel航空連接器（M23 Fast Ethernet PoE connectors）

產品價格：￥1.00元/只

上架日期：2025-04-29

發貨地：上海浦東新區

供應數量：不限

最少起訂：1只

瀏覽量：7

點擊詢價 QQ洽談

詳細說明

詳細參數
品牌	Hummel	型號	齊全
加工定制	否	材質	金屬
耐溫	耐高溫型	阻燃性	一般
執行質量標準	歐標	產地	其他
顏色	其他

德國胡默爾Hummel航空連接器（M23 Fast Ethernet PoE connectors）
Hummel連接器代理商：上海頤品自動化科技有限公司（EPIN AUTOMATION）
關鍵詞：胡默爾Hummel尼龍電纜接頭，胡默爾Hummel黃銅鍍鎳電纜接頭，胡默爾Hummel不銹鋼電纜接頭
胡默爾Hummel屏蔽型電纜接頭，胡默爾Hummel防爆型電纜接頭，德國胡默爾Hummel防爆格蘭密封接頭
胡默爾Hummel尼龍悶蓋，胡默爾Hummel黃銅鍍鎳堵頭，胡默爾Hummel不銹鋼堵頭/變徑接頭/防爆堵頭
胡默爾Hummel連接器，胡默爾Hummel接線盒，胡默爾Hummel航空插頭，胡默爾Hummel尼龍軟管接頭

Hummel Circular connectors- 胡默爾Hummel航空連接器
Hummel電纜接頭代理商：上海頤品自動化科技有限公司（EPIN AUTOMATION）
Hummel Circular connectors，上海頤品自動化科技有限公司(Hummel代理商)

Hummel Circular connectors（Hummel圓形連接器）

Hummel連接器代理商：上海頤品自動化科技有限公司（EPIN AUTOMATION）

M23 Fast Ethernet PoE
This couple connector is capable of transferring the highest data rates, up to the giga range.

This enormous density in an M23 casing is made possible by the use of four Twinax inserts for data transfer.

Five separate shields prevent crosstalk. The M23 is designed for robust deployment in industrial environments.

M23 Fast Ethernet PoE housing

M23 Fast Ethernet PoE cable connector

Housing type	Cable
Material housing	brass, Zinc Die Cast
Material housing surface	Nickel

Temperature range	-40°C to +125°C
Protection class	IP 67

Version

Shield

Cable ?

Item-No

Screw shielded 11 – 17 mm 7.108.600.000

Version	Shield	Cable ?	Item-No
Screw	shielded	11 – 17 mm	7.108.600.000

M23 Fast Ethernet PoE coupler connector

Housing type Coupler

Material housing brass,
Zinc Die Cast

Material housing surface Nickel

Temperature range -40°C to +125°C

Protection class IP 67

Version

Shield

Cable ?

Item-No

Screw shielded 11 – 17 mm 7.208.600.000

Version	Shield	Cable ?	Item-No
Screw	shielded	11 – 17 mm	7.208.600.000

M23 Fast Ethernet PoE panel connector

Material housing	Zinc Die Cast
Material housing surface	Nickel
Seal type	O-Ring

Material seals/o-rings	NBR
Protection class	IP 67
Temperature range	-40°C to +125°C

Installation type	Shield	Item-No
Front wall	unshielded	7.408.000.000
Rear wall	unshielded	7.468.000.000

M23 Fast Ethernet PoE right angle cable connector

Material housing brass,
Zinc Die Cast

Material housing surface Nickel

Material seals/o-rings NBR

Temperature range -40°C to +125°C

Protection class IP 67

Shield

Cable ?

Item-No

shielded 11 – 17 mm 7.308.600.000

Shield	Cable ?	Item-No
shielded	11 – 17 mm	7.308.600.000

M23 Fast Ethernet PoE inserts

Material insulating body PA 6,
PBT

Nominal current data 2 A

Nominal?current signal 8 A

Nominal voltage at degree of pollution 3 data 60 V~

Nominal voltage at degree of pollution 3 signal 160 V~

Temperature range -40°C to +125°C

Degree?of?Protection 3

Minimum mating cycles > 1000

Characteristic of connection	Number of poles	Pole picture	Insert	Item-No
Crimp	20	4 x 2 + 12	Pin	7.003.920.101
Crimp	20	4 x 2 + 12	Socket	7.003.920.102

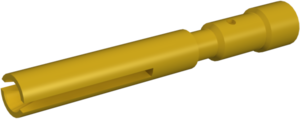

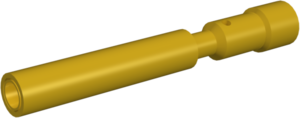

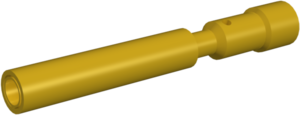

M23 Fast Ethernet PoE contacts

Crimp contact

Crimp range

Item-No

Crimp socket signal 1 mm machined 0.34 – 1 mm2 7.010.901.002

Crimp socket signal 1 mm machined 0.08 – 0.56 mm2 7.010.901.012

Crimp socket signal 1 mm machined 0.75 – 1.5 mm2 7.010.901.022

Crimp pin signal 1 mm machined 0.75 – 1.5 mm2 7.010.901.045

Crimp socket signal 1 mm machined 1 – 1.75 mm2 7.010.901.046

Crimp pin signal 1 mm machined 0.14 – 1 mm2 7.010.901.049

Crimp socket signal 0,6 mm machined 0.08 – 0.34 mm2 7.010.980.602

Crimp pin signal 0,6 mm machined 0.08 – 0.34 mm2 7.010.980.641

Crimp contact	Crimp range	Item-No
Crimp socket signal 1 mm machined	0.34 – 1 mm2	7.010.901.002
Crimp socket signal 1 mm machined	0.08 – 0.56 mm2	7.010.901.012
Crimp socket signal 1 mm machined	0.75 – 1.5 mm2	7.010.901.022
Crimp pin signal 1 mm machined	0.75 – 1.5 mm2	7.010.901.045
Crimp socket signal 1 mm machined	1 – 1.75 mm2	7.010.901.046
Crimp pin signal 1 mm machined	0.14 – 1 mm2	7.010.901.049
Crimp socket signal 0,6 mm machined	0.08 – 0.34 mm2	7.010.980.602
Crimp pin signal 0,6 mm machined	0.08 – 0.34 mm2	7.010.980.641

M23 Fast Ethernet PoE accessories
