| 詳細(xì)參數(shù) | |||
|---|---|---|---|
| 品牌 | 玝琳 | 型號(hào) | HWIR300B-5 |
| 換熱方式 | 表面式 | 裝置方式 | 立式 |
| 水壓 | 中壓 | 加工定制 | 否 |
| 加熱器類型 | 空氣加熱器 | 工作壓力 | 1200PA |
| 加熱功率 | 3KW | 用途 | heating,drying |
| 產(chǎn)地 | China | 外形尺寸 | 其他 |

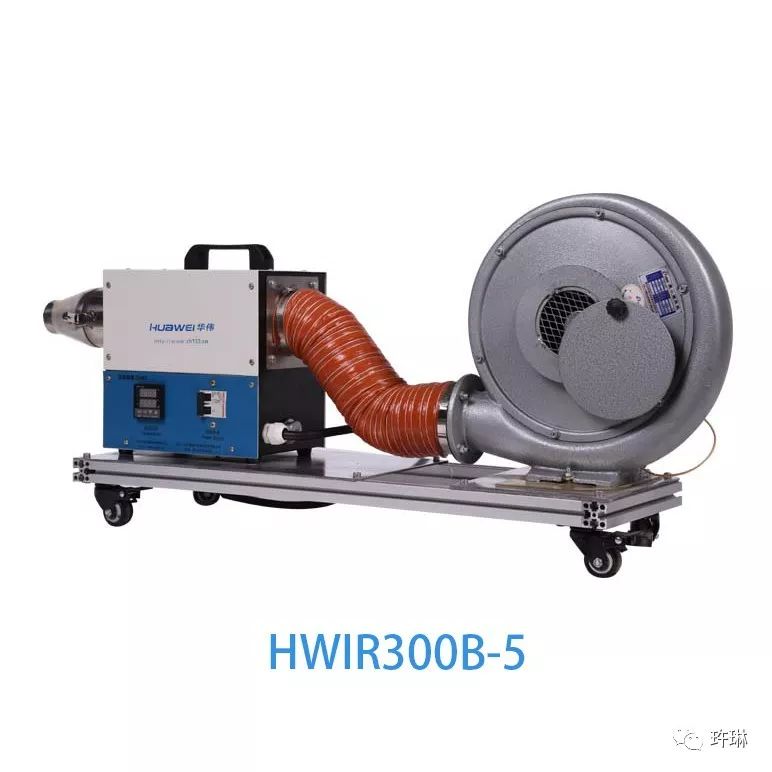

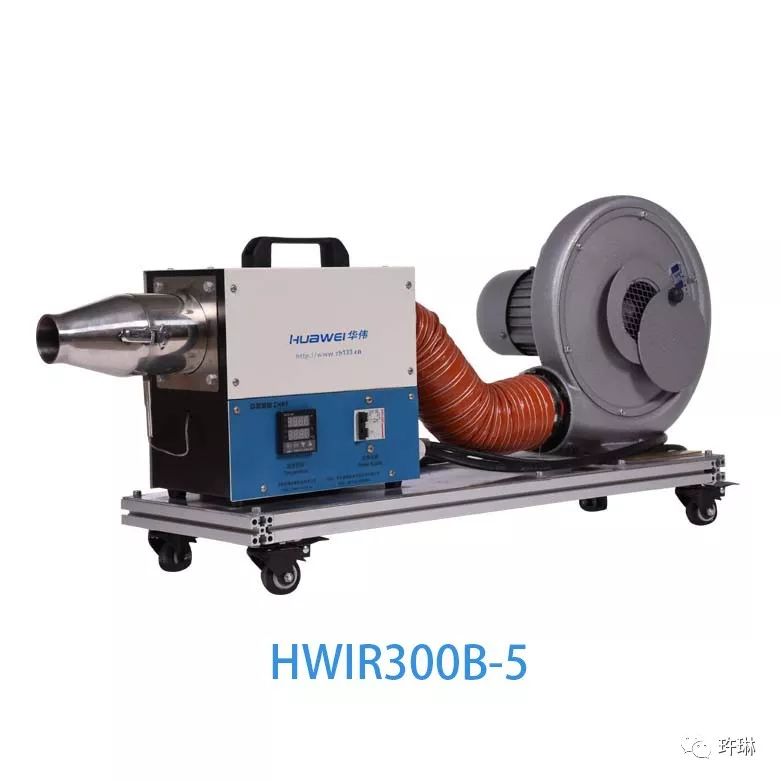

HWIR300B-5 industrial hot air blower is suitable for heating, drying and dehumidification in food, pharmaceutical, electronic, printing, spraying, cleaning and other industries, as well as heating and temperature rise in large area and large space.Because of its small volume and light weight, it is easy to move.And it has high thermal efficiency,so it can work continuously without interruption,it is durable and has accurate temperature control.
Characteristic:
Temperature control system
The temperature is controlled by PID/SSR, the control precision is high, and the reb is sensitive.
Air inlet interface
The machine adopts a tight air inlet interface, and the selection perbance of the wind source is strong .
Air volume selection
This machine can choose the air source or distribute the air source according to the need. It is convenient and practical. The standard configuration of this machine is 250W medium pressure blower.
Manual adjustment of air volume
This machine is equipped with medium pressure fan, and the air inlet port has air volume adjusting valve. It can adjust the intake volume according to the need.
Insulation
Multi-fiber insulation cotton insulation, strong machine shell makes the machine safe and reliable in use, can keep high temperature work for a long time.
Digital display temperature regulation
The air outlet is equipped with a temperature sensor, so that the machine can adjust the temperature according to the needs, the maximum use temperature of 395℃. The accuracy of temperature control is + 1℃.
High heat exchange efficiency
Ingenious design of wind tunnel let the air unib through the inside and outside of the helical heating wire.Heat exchange near 100%,the loss of wind pressure is less.
Security
It has overheating overload protection, power cut protection device, fully guarantee the safety of the equipment, do not produce exhaust gas, and meet the environmental protection.
|
Classification |
Item |
Parameter |
|
Size |

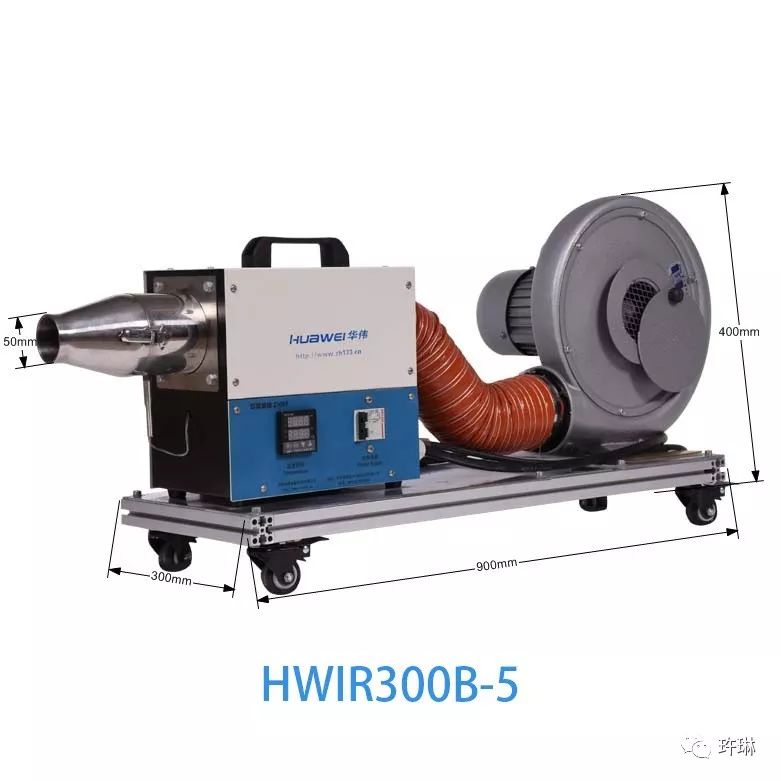

Machine size |
350×160×230mm |
|
Vent |
Diameter 89mm or 50mm |
|
|
air intake |
Diameter 89mm |
|
|
Insulation layer |
Material |
Multi fiber insulation cotton |
|
Heater |
Name |
Electric hot wire |
|
Heater power |
3KW |
|
|
Heating wire life |
10000 hours |
|
|
Air intake |
Blower |
250W Medium pressure blower |
|
Maximum wind volume |
450m3/h |
|
|
Full pressure |
1200pa |
|
|
Vent
|
diameter |
89mm 50mm |
|
Outlet maximum air volume |
420m3/h |
|
|
Temperature of outlet at maximum air volume |
>60℃ |
|
|
Maximum service temperature |
<395℃ |
|
|
Temp Accuracy |
±1℃ |
|
|
Power Supply
|
Power demand |
220V |
|
Power |
3250W |
|
|
weight |
Weight |
20KG |
