| 詳細參數 | |||
|---|---|---|---|
| 品牌 | 恩德斯豪斯 | 型號 | 80I50-AD2WAAAAAAAA |
| 連接方式 | 法蘭式 | 測量范圍 | 0m3 |
| 電源電壓 | 3V | 精度等級 | ±0.2% |
| 防爆等級 | ExdIIBT3 | 防護等級 | IP44 |
| 公稱通徑 | DN4mm-DN600mm | 工作溫度 | -200℃-500℃ |
| 工作壓力 | 見資料 | 輸出方式 | Hart |
| 顯示方式 | 遠傳顯示 | 適用介質 | 各種腐蝕性介質 |
| 量程比 | 1:4 | 材質 | 304不銹鋼 |
| 功耗 | ＜10W | 加工定制 | 否 |
| 是否進口 | 否 | 產地 | 廣州 |

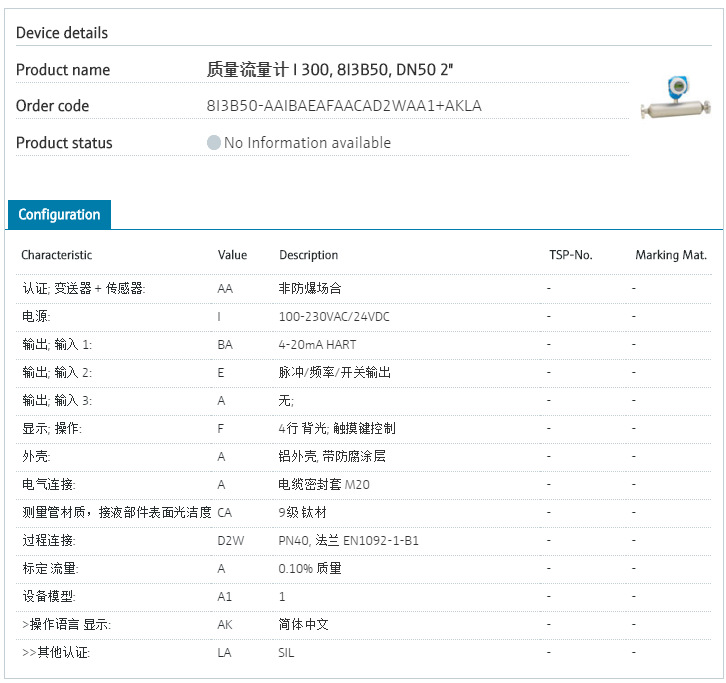

80I50-AD2WAAAAAAAA停產了用8I3B50-25Q8/0代替
Proline Promass I 300科里奧利質量流量計
同時進行在線粘度測量和流量測量，搭配操作簡便的一體式變送器
產品規格參數
大測量誤差
質量流量（液體）：±0.10 %
體積流量（液體）：±0.10 %
質量流量（氣體）：±0.50 %
密度（液體）：±0.0005 g/cm3
測量范圍
0...180 000 kg/h (0...6600 lb/min)
介質溫度范圍
–50...+150 °C (–58...+302 °F)
大過程壓力
PN 100，Cl. 600，63K
接液部件材質
測量管：9級鈦
連接部件：2級鈦
測量原理
科里奧利質量流量
產品標題
Combines in-line viscosity and flow measurement with a compact, easily accessible transmitter.
.
Measuring liquids and gases in applications requiring low pressure loss and gentle fluid treatment.
傳感器特點
Energy‐saving – full-bore design enables minimal pressure loss. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs.
Straight, easy-to-clean single-tube system. TMB technology. Measuring tube made of Titanium.
變送器特點
Full access to process and diagnostic inbation – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology.
Compact dual-compartment housing with up to 3 I/Os. Backlit display with touch control and WLAN access. Remote display available.
